Marine SSB Radio  Kits, Components, and Accessories

 You provide the boat, ground, and antenna, and we provide the rest. The kits below contain everything you need.

Icom Marine SSB Radio Kits
Radio Model(s) / Kit Name Kit Part Number Kit Contents & Description Pricing & Ordering



IC-M802 Radio Kit

The Sailors Quick-Start Guide
To
Sailmail / AirMail / Winlink2000

by
Gary Jensen




© 2007 DockSide Radio



IC-M802k


You supply the boat, antenna, and RF ground, and DSR's ICM802k SSB kit does the rest. The M802's flexible three-piece design makes it easy to install: mount the separate control head & speaker at your nav/helm station where space is scarce, and squirrel away the main radio unit in a more seldom used locker or cubby hole. Both the control head and speaker have a generous bezel, making a good looking "flush mount" a snap, even for skippers who are not expert wood workers (requires MB-75 flush Mount Kit).

The ICM802k contains everything you need to for a complete SSB system:

  1. M802 marine SSB transceiver.
  2. AT-140 Antenna Tuner
  3. OPC-1147N tuner control cable (10M - 30+Feet).
  4. GPS data cable w/BNC connector (12').
  5. RG-8 double-shielded coaxial cable (Up to 30')*.
  6. GTO-15 antenna lead-in wire (Up to 20')*.
  7. The "G-TŌ Bug", GTO-15 to Backstay connector.
  8. Copper RF grounding foil (Up to 9', heavy-duty .011 thick 4-inch Wide - Won't dissolve in your bilge).
  9. T-4-500 "common mode" coaxial RF Choke.
  10. Double-male coaxial connector.
  11. RF chokes - FairRites (two XL type-31 snap-on ).
  12. The Sailors Quick-Start Guide to SSB Radio Installation & Operation (a DSR exclusive).
  13. 1-hour expert technical support included.

* Call or e-mail your length requirements.

Radio Specifications are in "Al a Carte" section below


$2500 + $65 Shipping, Handling, & Insurance*

IC-M710 Radio Kit

The Sailors Quick-Start Guide
To
Sailmail / AirMail / Winlink2000

by
Gary Jensen




© 2007 DockSide Radio
IC-M710k



Similar to the IC-M802k kit above except that the IC-M710k kit is built upon the Icom M-710 transceiver.

  1. M710 marine SSB transceiver.
  2. AT-130 Antenna Tuner
  3. OPC-566 tuner control cable (30').
  4. RG-8 double-shielded coaxial cable (Up to 30')*.
  5. GTO-15 antenna lead-in wire (Up to 20')*.
  6. The "G-TŌ Bug", GTO-15 to Backstay connector.
  7. Copper RF grounding foil (Up to 9', heavy-duty .011 thick 4-inch Wide - Won't dissolve in your bilge).
  8. T-4-500 "common mode" coaxial RF Choke.
  9. RF chokes - FairRites (two XL type-31 snap-on ).
  10. The Sailors Quick-Start Guide to SSB Radio Installation & Operation (a DSR exclusive).
  11. 1-hour expert technical support included.

* Call or e-mail your length requirements.

Radio Specifications are in "Al a Carte" section below

$2200 + $65 Shipping, Handling, & Insurance*

IC-M700Pro Radio Kit

The Sailors Quick-Start Guide
To
Sailmail / AirMail / Winlink2000

by
Gary Jensen




© 2007 DockSide Radio
IC-M700Pk



The price leader in Marine SSB Radio Kits, the IC-M700Pk kit provides the same 150 watt SSB performance as the IC-M710k kit at a $350 savings. The IC-M700Pk kit is similar to the IC-M710k kit above except it's built upon the Icom M700Pro

  1. M700Pro marine SSB transceiver.
  2. AT-130 Antenna Tuner
  3. OPC-566 tuner control cable (30').
  4. RG-8 double-shielded coaxial cable (Up to 30')*.
  5. GTO-15 antenna lead-in wire (Up to 20')*.
  6. The "G-TŌ Bug", GTO-15 to Backstay connector.
  7. Copper RF grounding foil (Up to 9', heavy-duty .011 thick 4-inch Wide - Won't dissolve in your bilge).
  8. T-4-500 "common mode" coaxial RF Choke.
  9. RF chokes - FairRites (two XL type-31 snap-on ).
  10. The Sailors Quick-Start Guide to SSB Radio Installation & Operation (a DSR exclusive).
  11. 1-hour expert technical support included.

*Call or e-mail your length requirements.

Radio Specifications are in "Al a Carte" section below

$1850 + $65 Shipping, Handling, & Insurance*
SSB Radio Accessories & Accessory Kits
Kit Name Kit Part Number Kit Contents & Description Pricing & Ordering
M802 DSC Antenna Kit

Digital Selective Calling is discussed in detail on pages 15-42 of the M802 Instruction Manual.


 DSC802-1

Rail Mount Fits 1" stainless rail



Is your M802 hooked-up to receive DSC (digital Selective Calling) emergency & routine calls?

If you have an unused coaxial antenna connector on the back of your M802 you need this kit. This is the antenna that connects to that unused second coaxial connector. What's connected to your DSC antenna connector?

The Icom M802 is actually two separate receivers inside one box; the regular SSB receiver for standard SSB communications, and a dedicated Digital Selective Calling (DSC) receiver. It is this second DSC receiver that listens for DSC calls addressed to your MMSI number (the number you've programmed into your M802). If you don't have an MMSI number DockSide Radio can file for one on your behalf - see FCC Licenses on this web site or call 941.661.4498).

Kit contents:
  1. METZ WEFAX/DSC antenna with mounting bracket.
  2. Rail mount for 1" or 7/8" stainless tubing.
  3. 40-feet RG8x coaxial cable with PL259 connectors on each end.


DSC802-1
$149.95 + $25 Shipping, Handling, & Insurance*


DSC802-7/8

Rail Mount Fits 7/8" rail
DSC802-7/8
$149.95 + $25 Shipping, Handling, & Insurance*


GPS Data Cable

 GPS-802

The GPS-802 Data Cable solves the problem of getting GPS data into your M802. Simply cut the 12-foot cable to the length you need. On the GPS end connect the center conductor to the GPS data out & the shield to GPS signal ground. On the M802 end simply connect the molded BNC connector to the GPS Input and you're "good-to-go".

The GPS-802 consists of twelve feet of RG-174 mini-coax with a BNC connector factory installed on one end, and wire to connect to GPS + & GPS - on the other end.

$14.95 + $6 Shipping, Handling, & Insurance*

The Sailors Quick-Start Guide
To
Sailmail / AirMail / Winlink2000


Preliminary
by

 Gary Jensen

© 2007 DockSide Radio

- Preliminary Edition -

7201

Learn How to Install & Operate
Your Icom M802, M710, M700Pro SSB

What You Need to Know to Make Your SSB Work

That's what the Quick-Start Guide to SSB Radio is all about. Whether you need help figuring out how to use your SSB, or you're planning on doing your own installation, The Sailors Quick-Start Guide to SSB Radio Installation & Operation has the information you need. Thirty-six pages of focused, actionable information give you the tools you need to make it work.



$12.95* + $2.50 Shipping Handling, & Insurance**


"Al a Carte" Product Listing
Icom M-802 Components
Item Part # Description Add to Shopping Cart

IC-M802

Icom M802

Digital SSB with detached control head and separate speaker.
Flexible installation and reliable performance.

A large LCD dial display, well spaced buttons, and large channel selector knobs make the Icom M802 a breeze to use even in rough seas. The Icom M802's "general coverage" receiver pulls in signals from 0.5 MHz to 29.999 MHz, giving you the tuning range that enables you to listen to standard commercial AM radio broadcast, Ham and Marine SSB radio, as well as long-distance shortwave news, weather, and sports (a great feature when at sea). Connect the proper radio modem to your Icom M802, and the M802 becomes the heart of a world-wide e-mail and weather FAX (WEFAX) system.

Features:

  •  Easy, flexible installation:

    • Three Easy Pieces.

      • The 4"H x 8"W x 4"D remote control head has a generously wide trim bezel, making surface mounting a cinch (MB-75 Flush Mount Kit or equivalent required).

      • Main Unit can be hidden away under the navigators seat or other seldom-used location using the included mounting bracket.

      • Remote speaker can be either flush mounted using a MB-75 Flush Mount Kit, or surface mounted using the included mounting bracket.

  •  All cables simply plug-in except for the antenna and GPS input cables which use a standard coax screw-on PL-259, or twist-on BNC connector.

  •  Separate external speaker (included) permits you to place the sound where it's most needed.

  •  150 watts of power*, 100% duty cycle

  •  Receive: 500 kHz - 29.9999 MHz

  •  Transmit: 1.6 MHz - 27.5 MHz*

  •  Computer controllable (requires separate software & standard RS-232/Serial cable).

  •  160 user programmable alpha numerically labeled memory channels (1355 channels maximum).

  •  GPS data input port (key safety requirement for effective emergency digital calling).

  •  Direct transmit/receive frequency input using keypad entry.

  •  Large backlit, dot-matrix LCD display with 10 user-selectable brightness levels.

  •  Large tactile knobs - easy to use in rough boating conditions.

  •  Backlit keypad keys make reading key function at night easy.

  •  Simple electrical connections for easy installation.

  •  2 year manufacturers warranty.

* 60 watts PEP output above 24 MHz

Warranty 2 Years
Product Dimensions 3.69"H x 9.44"W x 9.38"D
Output Power 150, 60, 20 Watts PEP (User Selectable)
Available Channels (160 user programmable; 249 ITU SSB duplex; 72 ITU SSB simplex; 662 ITU FSK duplex; 160 e-mail; 21 ITU 4MHz simplex; 31 ITU 8MHz simplex)
Memory Channels 160 user programmable

Power Requirements

  •  13.6VDC +/- 15%

  •  3 Amps receive (Max audio), 30 Amps transmit

Dimensions:

  • Controller

     8 21/32 Width,  4 11/32 Height, 3 5/16 Width



  • Main Unit

     9 7/16 Width,  3 11/16 Height, 9 3/8 Width



  • Speaker

     4 11/32 Width,  4 11/32 Height, 3 5/16 Width

Weight:

  Controller

Main Unit

Speaker
  1.26 lb.

10.36 lb.

0.81 lb.

Included Accessories/Parts:

  •  Instruction Manual
  •  Channel Guide
  •  Surface mounting bracket
  •  13.8VDC Power Cable



Included Accessories/Parts:

  •  Instruction Manual
  •  Channel Guide
  •  Surface mounting brackets for the main unit, speaker, and detachable control head.
  •  13.8VDC Power Cable
 		 $1699.99 + $40 Shipping, Handling, &
Insurance*

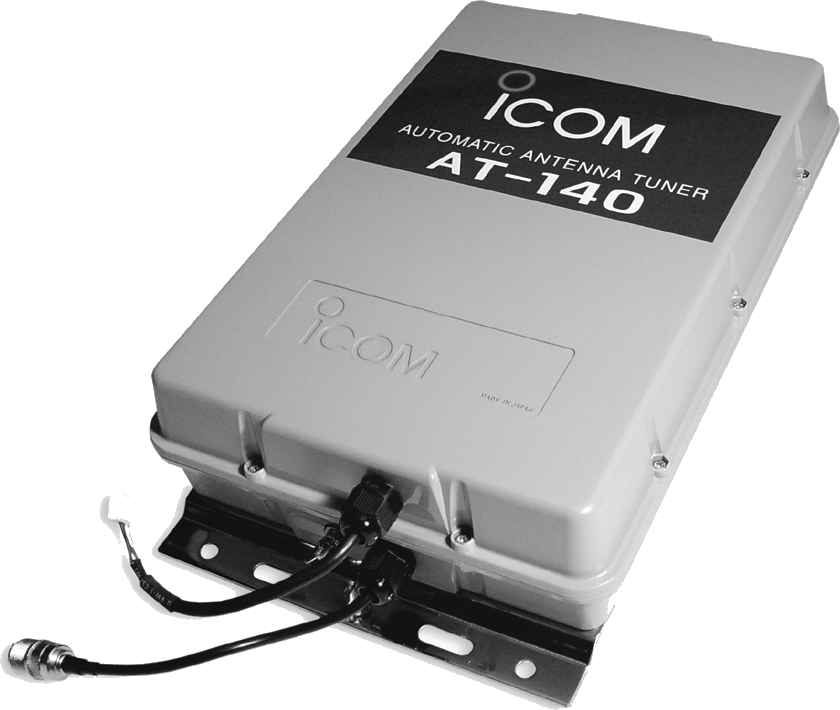

 IC-AT-140

The companion Antenna Tuner for the Icom M802 SSB, the AT-140 matches your backstay, 23-foot or 17-foot vertical antenna to your M802. Two cables are required to connect your AT-140 to your M802; a coaxial cable to carry the radio signals to/from your antenna, and the OPC-II47/N tuner control cable to supply 13.8VDC, DC ground, and tuning status signals.

$450 + $25 Shipping, Handling, &
Insurance*


  OPC-1147 Designed to connect the M802 to the AT-140 Antenna Tuner, the 10 Meter (30+ feet) OPC-1147/N Shielded Control Cable carries +/- 13.8VDC power and tuner status control signals between the M802 SSB and AT-140 antenna tuner. With preinstalled connectors on both ends, the OPC-1147 easly plugs into matching connectors on the M802 and AT-140. $69.99+ $15 Shipping, Handling, &
Insurance*



IC-MB-75 Give your M802 SSB radio a neat professional look by flush mounting the control head and speaker using the MB-75 mounting kit. Simply insert your control head or speaker into an appropriately sized hole, and from the backside attach the left and right clamping brackets and adjust the jack-screw. One kit (two brackets) required for each mountable device. $26.95 + $6.00 Shipping


Icom M-710/700Pro Components
Item Part # Description Add to Shopping Cart

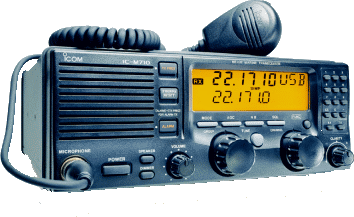

IC-M710
The Icom M710's "general coverage" receiver pulls in signals from 0.5 MHz to 29.999 MHz, giving you the tuning range that enables you to listen to standard commercial AM radio broadcast, Ham and Marine SSB radio, as well as long-distance shortwave news, weather, and sports (a great feature when at sea). Connect the proper radio modem to your Icom M802, and the M802 becomes the heart of a world-wide e-mail and weather FAX (WEFAX) system.

Specifications:

  •  150 watts PEP of power (150, 60, 20 Watts selectable)

  •  Receive frequency range: 500 kHz - 29.9999 MHz

  •  Transmit frequency range: 1.6 MHz - 27.5 MHz*

  •  13.6VDC +/- 15%

  •  Computer controllable (requires separate software & custom cable)

  •  160 user programmable alpha-numerically labeled memory channels

  •  1136 channels maximum

  •   Direct transmit/receive frequency input using keypad entry.

  •  Large backlit,  LCD display with 10 user-selectable brightness levels

  •  Large tactile knobs - easy to use in rough boating conditions

  •  Backlit keypad keys make reading key function at night easy

  •  Simple electrical connections for easy installation

  •  2 year manufacturers warranty

* 60 watts PEP output above 24 MHz

Warranty 2 Years
Product Dimensions 3.69"H x 9.44"W x 9.38"D
Output Power 150, 60, 20 Watts PEP (User Selectable)
Available Channels (160 user programmable; 242 ITU SSB duplex; 72 ITU SSB simplex; 662 ITU FSK duplex;
Memory Channels 160 user programmable

Power Requirements

  •  13.6VDC +/- 15%

  • 2.5 Amps receive, (Max audio), 30 Amps transmit

Dimensions:

  •  Width - 1115/32 inches,  Height - 419/32 inches, Depth - 1213/32 inches

Weight:

  •  17.5 pounds

Included Accessories/Parts:

  •  Instruction Manual
  •  Channel Guide
  •  Surface mounting bracket
  •  13.8VDC Power Cable
 		 $1399.99 + $35 Shipping, Handling, &
Insurance*

IC-AT-130

The companion Antenna Tuner designed to work with the Icom M710 or M700Pro SSB's. The AT-130 matches your backstay, 23-foot or 17-foot vertical antenna to your M710 / M700Pro. Two cables are required to connect your AT-130 to your M710/M700Pro; a coaxial cable to carry the radio signals to/from your antenna, and the OPC-566 tuner control cable to supply 13.8VDC, DC ground, and tuning status signals.

$415+ $25 Shipping, Handling, &
Insurance*


  OPC-566 The OPC-566 is designed to connect the M710 or M700Pro to the AT-130 Antenna Tuner. The 32-foot (10 Meter) OPC-566 Shielded Control Cable carries +/- 13.8VDC power and DC ground to the tuner, and carries tuner status control signals between the M710 / M700Pro SSB's and AT-130 antenna tuner. $85+ $15
Shipping, Handling,
&
Insurance*


IC-M700Pro

Now - Easy-to-Program -

The new M700Pro is a dream come true when it comes to entering new frequencies. Simply enter the frequency numbers using the key pad keys, and press the ent  key. That's all there is to it!  Both receive and transmit frequencies are programmed with this one simple entry.

Specifications:

  •  150 watts PEP of power* (150, 60, 20 Watts selectable)

  •  Receive frequency range: 500 kHz - 29.9999 MHz

  •  Transmit frequency range: 1.6 MHz - 27.5 MHz*

  •  Computer controllable (requires separate software & custom cable)

  •  149 user programmable memory channels

  •  150 channels maximum

  •   Direct transmit/receive frequency input using keypad entry.

  •  Large backlit,  LCD display with 10 user-selectable brightness levels

  •  Large tactile knobs - easy to use in rough boating conditions

  •  Backlit keypad keys make reading key function at night easy

  •  Simple electrical connections for easy installation

  •  2 year manufacturers warranty

* 60 watts PEP output above 24 MHz

Warranty 2 Years
Product Dimensions 3.69"H x 9.44"W x 9.38"D
Output Power 150, 60, 20 Watts PEP (User Selectable)
Available Channels (160 user programmable; 242 ITU SSB duplex; 72 ITU SSB simplex; 662 ITU FSK duplex;
Memory Channels 160 user programmable

Power Requirements

  •  13.6VDC +/- 15%

  • 2.5 Amps receive (Max audio), 30 Amps transmit

Dimensions:

  •  Width - 1115/32 inches,  Height - 419/32 inches, Depth - 1213/32 inches

Weight:

  •  17.5 pounds

Included Accessories/Parts:

  •  Instruction Manual
  •  Channel Guide
  •  Surface mounting bracket
  •  13.8VDC Power Cable
$1125+ $48 Shipping, Handling, & Insurance*
